SF Type Spiral Sand Water Separator

Spiral Sand Water Separator is a light-weight sand-water separator, which is mainly used to further separate the sand-water mixture discharged from the cyclone grit settler and other equipment.
  • SF
  • RYDE-ENV ( Ryde Environment )

Product Description

The spiral sand water separator is installed with an inclination of 20°-30°.

sand-water mixed material enters the water tank from the inlet pipe, and the particles with larger specific gravity (such as sand grains) in the mixed liquid are deposited on the bottom of the spiral groove due to the drop of self-weight surface.

Under the urging of the screw, the material is lifted along the bottom of the inclined U-shaped groove, and after leaving the liquid surface, it continues to move a certain distance.

The water in the sand gradually flows back into the water tank in the gap in the spiral groove.

The sand also gradually dries at the discharge port and falls on other conveying devices depending on its own weight. The supernatant is continuously drained from the drain to achieve sand separation.

Spiral sand water separator-Ryde env-Structure


● Compact structure, Small area coverage, Less investment.

● Economic, low maintenance cost.

● High efficiency in sand removal.

● Corrosion resistant material, strong equipment patience.

● Easy operation

Model Selection

Spiral sand water separator-model selection1

Spiral sand water separator-model selection 2


★ Yangzhou Ryde keeps the rigfht to optimize and change the parameters.

★ For detailed product information, you can contact us directly.

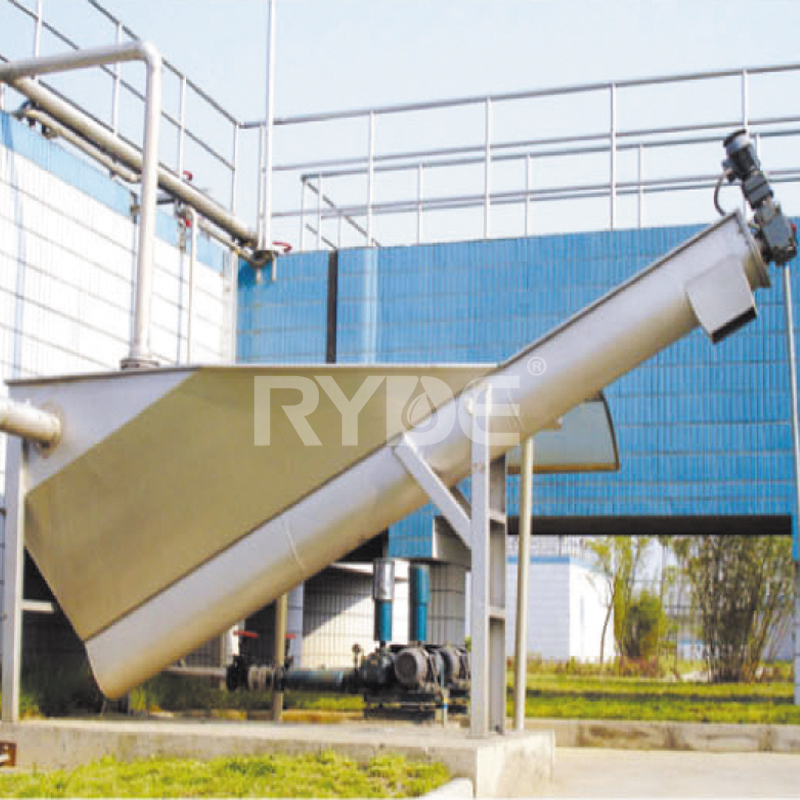

The spiral sand water separator is widely used for urban guest house, mineral factory, and water treatment project pretreatment process.

Spiral sand water separator-application
