ZL350×600
RYDE-ENV ( Ryde Environment )
Availability: | |
---|---|
Quantity: | |
Technical Specification
Type | ZL350×600 | Treating Capacity | 8-42 m3/h |
Grid gap | 0.25-2.5mm | Drum dimension | φ350×600 |
Dimension | 1130mm (Length)×820mm (Width)×1100mm (Height) | ||
Energy consumption of the whole machine | |||
Power consumption | 0.25kw | ||
Water consumption | 1.0m3/h | Water supply pressure | 0.5Mpa |
Detailed list of pipeline connection | |||
Pipe port for water inlet | DN100 Flange Connection PN1.0Mpa JB/T81-94 | ||
Pipe port for water outlet | DN125 Flange Connection PN1.0Mpa JB/T81-94 | ||
Pipe port for vent | DN32 Flange Connection PN1.0Mpa JB/T81-94 | ||
Pipe port for overflow | DN80 Flange Connection PN1.0Mpa JB/T81-94 | ||
Pipe port for flushing water inlet | DN15 External thread connection G1/2 " | ||
Material | |||
Main material | SS304 | Scraper | PP or nylon with brass |
Spray nozzle | SS304 | System pipeline accessories | Combination of brass and stainless steel |
Gas spring | SS304 | Electric control panel | SS304 |
All fasteners | SS304 | ||
Configuration and brand | |||
Motor and reducer | Chinese famous brand | Bearing | NSK |
Electrical components | Chinese famous brand | ||
Note | |||
1. The electronic control system, configuration and brand can be customized according to customers'requirements. | |||
2. For detailed information and drawings, please contact our engineer. |
Product Description
The Rotary Drum Filter made by Yangzhou Ryde Environment is one of the pre-treatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively..
The drum does the rotary movement by the driving device, and the sewage is moved from the inlet pipe into the filtrate tank, then flow out.
The solid materials are intercepted by screen,and the water is drained out into the pool from the gap of the screen. The cylinder continuously rotates,and the solid substances attached to the outer wall of the screen quickly peel off from the drum.The backwashing system is composed of a flushing line and nozzles.
The high pressure water is sprayed through the nozzles, and the solid objects attached to the sieve is flushed out quickly.The filtration is continuous and non clogged.
The external rotary drum screen has the characteristics of high efficiency, large throughput and fine filtration.
1 | Water Storage Tank | 2 | Frame |
3 | Drum | 4 | Slag Board |
5 | Inspection Door | 6 | Motor and Reducer |
7 | Flushing water Inlet |
Features
Simple structure, high reliability.
Compact structure, small convring ares.

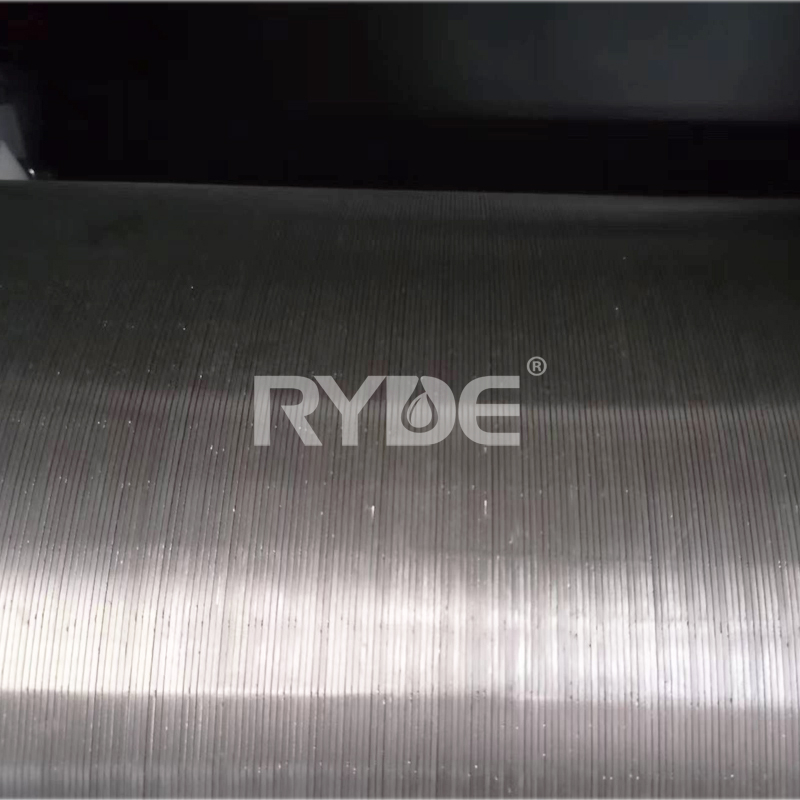

The surface of the drum is made of wedge grid and has excellent hydraulic characteristics.
Model Selection
Note:
★ When the rotary drum filter model with grid gap greater than 1mm is selected, the inlet and outlet pipe diameter needs to be checked.
★ Yangzhou Ryde keeps the rigfht to optimize and change the parameters.
★ For detailed product information, you can contact us directly.
Application
Water separation treatment of waste water in these industries :
● Paper Mills
● Food Industry
● Chemical Industry
● Slaughterhouse
● Municipal
